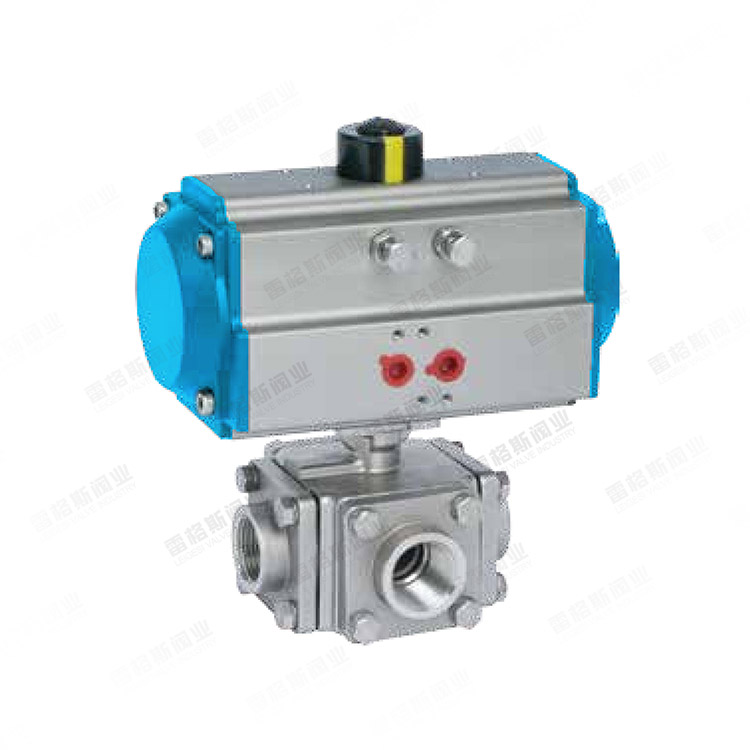

Pneumatic three-piece threaded ball valve

Overview:

The pneumatic three-piece ball valve is composed of a pneumatic actuator and a three-piece ball valve. It features a compact structure, wide application range, and convenient and simple maintenance. It is widely used in various industries. Pneumatic three-piece ball valves are classified into single-acting and double-acting types based on their action forms. The single-acting type features an automatic spring return function, which can automatically return to the initial open or closed state when a fault occurs or there is no air source.

Technical parameters:

◆ Diameter: DN15 - DN100

◆ Pressure range :PN10-PN40

◆ Control gas: Neutral gas, air

◆ Air source pressure: 4bar-8bar

◆ Valve body material: CF8, CF8M, CF3M, 2205

◆ Sealing material: PTFE, PPL

◆ Valve stem material :CF8, CF3M, 2205

◆ Medium temperature: -20℃ to +180℃

◆ Connection methods: internal thread, clamp, welding, flange

◆ Ambient temperature :-20℃ to +60℃

◆ Optional accessories: single-acting cylinder, double-acting cylinder, position feedback, solenoid valve, single set, etc
