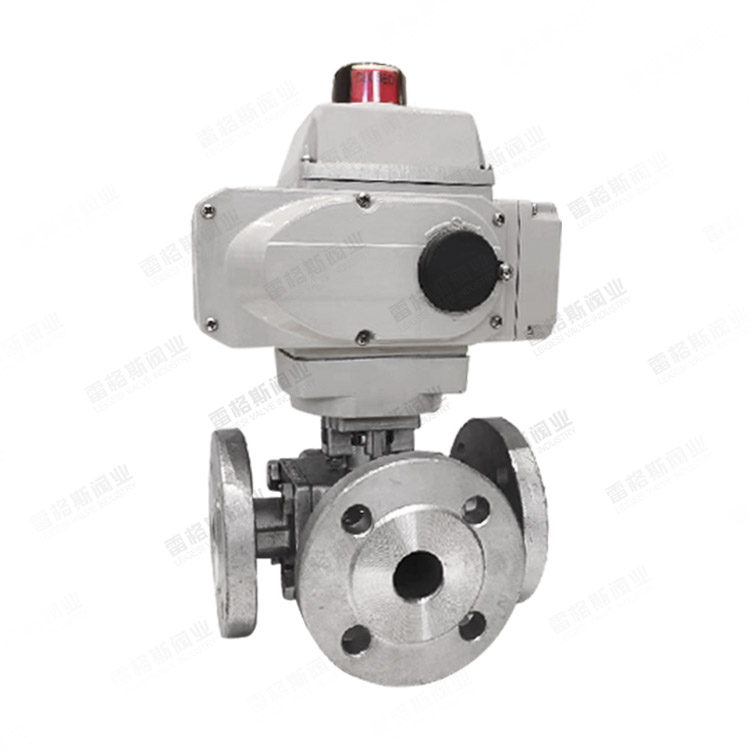

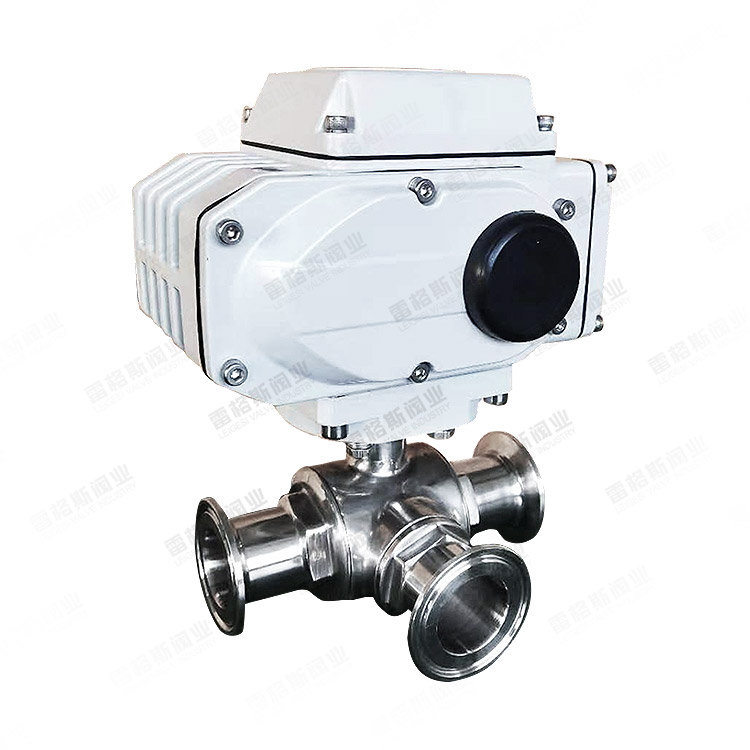

Electric ball valve

Overview:

Electric ball valves are driven by electric motors to rotate the ball valve, achieving flow control of the medium. They have the advantages of rapid opening and closing, good sealing performance, and long service life. They can meet the usage requirements under special working conditions such as high flow, high pressure, and high temperature, and are widely used in industries such as petroleum, chemical engineering, power, metallurgy, and water treatment.

Technical parameters:

◆ Diameter: DN15-DN200

◆ Pressure range: PN16-PN100, Class150, 10k

◆ Valve body material: WCB, CF8, CF8M, CF3M, 2205, 2507, 904L

◆ Sealing material: PTFE, PEEK, PPL, RPTFE, metal hard seal

◆ Medium temperature: -20℃ to + 180℃, 10℃ to + 350℃

◆ Connection method: Flange

◆ Applicable media: water, liquids, gases, oils, acidic and alkaline corrosive liquids, etc

◆ The control voltage: DC24V, AC24V, AC220V, AC380V.

◆ Control functions: Switching type, regulating type
