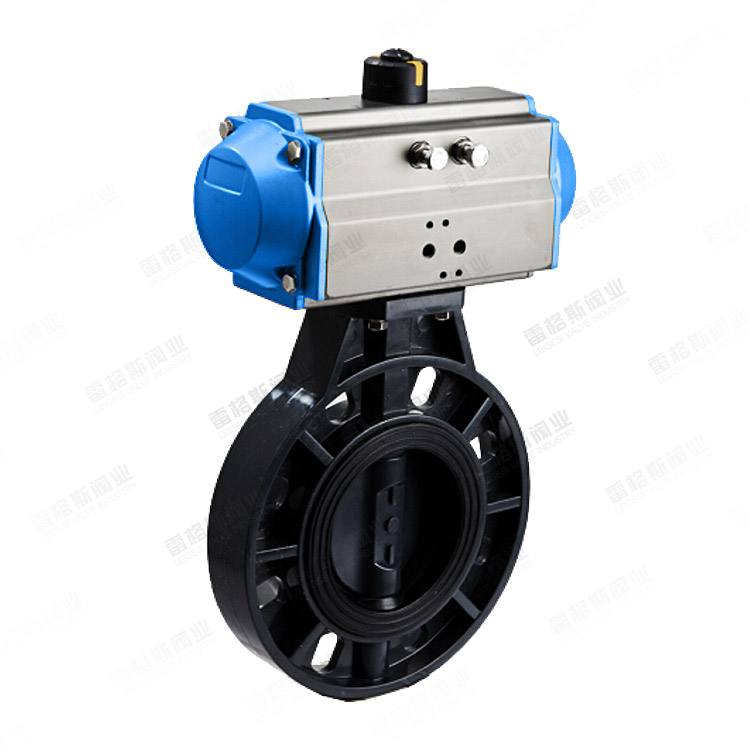

Pneumatic wafer butterfly valve

Overview:

The pneumatic butterfly valve is composed of a valve stem, valve body, valve plate, valve seat and pneumatic actuator, etc. When the pneumatic actuator receives a signal from the control system, it transmits power to the valve stem through compressed air or other gases, causing the valve plate to rotate and thereby changing the on-off state of the valve. The soft sealing design and structure of the valve seat enable the valve to have good sealing performance in the closed state, and it is widely used in the fluid control system in the industrial production process.

Technical parameters:

◆ Diameter: DN25-DN1200

◆ Control gas: Neutral gas, air

◆ Air source pressure: 4bar-8bar

◆ Pressure range: PN10, PN16, Class150, 10K

◆ Valve body material: QT, WCB, 304

◆ Valve plate materials: 304, 316, 316L, 2205, 2507, fluorine-lined, etc

◆ Valve seat material: NBR,EPDM,PTFE

◆ Medium temperature: -20℃ to 120℃

◆ Connection methods: Wafer clamping, flange

◆ Feature: Pinless structure

◆ Applicable media: water, liquid, gas, oil, acidic and alkaline corrosive media, etc
